Dissimilar Welds

Dissimilar metal specimens are one of the most difficult welded specimens to produce. They are also one of the most challenging to examine with ultrasound.
Sonaspection have developed procedures to overcome these challenges and produce high quality specimens with accurate flaws.
We have both the experience and capability and manufacture either individual or a set of specimens, which are customised to your specific requirements.

Recommended for

  • Advanced training and qualifications
  • Performance Demonstrations
  • Flaw detection
  • Flaw sizing
  • Complex weld geometries
  • Exotic materials
  • Equipment, procedures and personnel

All specimens are supplied with

  • As built CAD drawing
  • Flaw size statement
  • Certificate of conformance
  • A unique number
  • Inspection reports
  • Exotic materials
  • Material certificates

Optional extras

  • Flaw photographs
  • Flaw tracings

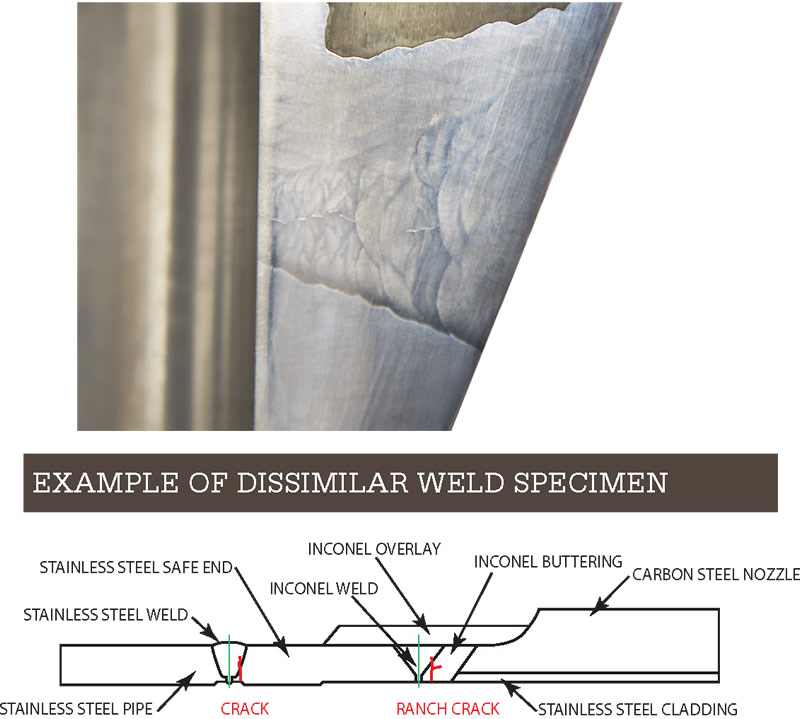

Excample of dissimilar weld specimen
